Registered
Joined
·
1,927 Posts
block work: (b18c-r)
stock crank (micropolished and balanced w/ CTR crank pulley)
all ARP bolts
OEM bearings
OEM gaskets
stock ITR rods
stock 81mm ITR (jdm) pistons
CTR crank pulley

head: (b16a)
mugen 2 layer head gasket
P&Ped
skunk2 valvetrain
skunk2 stg 1 cams
skunk2 cam gears
Hondata Intake mainfold gasket
skunk2 IM (ported to 70mm)
OEM ITR Throttle Body ported to 66mm
Toda timing belt

tranny:
fidanza aluminum flywheel
*edit* clutchmasters fx400 6 puck
ARP flywheel, and clutch bolts
*edit*omnipower CMC
JDM ITR tranny
energy suspension shift bushings
skunk2 shifter and knob

fuel and management:
walboro 255 lph
*edit*RC 310cc injectors
AEM Fuel Rail (not needed but i just re-used it from last build)
hondata s200

exhaust:
mugen header
Omni power test pipe
T1R Spl (thanks tomm!)

204whp/137 tq.

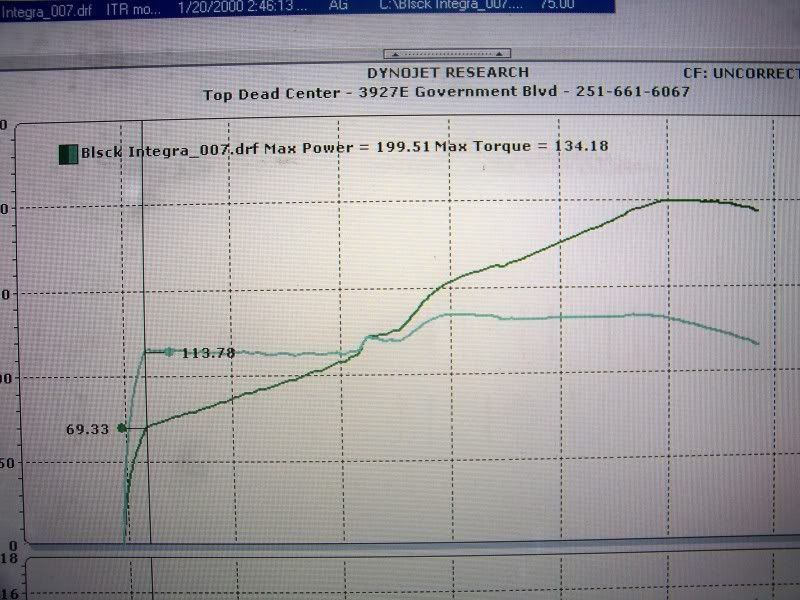

I dont have the graph that has these numbers...but i got one that is close so it'll have to do


http://static.photobucket.com/player.swf?file=http://vid64.photobucket.com/albums/h177/95gsrb16/100_0965.flv


·
Registered
Joined
·
782 Posts
360 at 16psi


took out most the irrelevant stuff from my list of parts

Transmission (GSR tranny)
Competition Stage 4 clutch
ACT streetlite flywheel
OBX Limited slip differential

Bottom end (JDM GSR B18C block)
Benson sleeved 84mm
CP 9.8cr 84mm pistons
Manley turbo tuff gsr connecting rods
OEM GSR crank
Moroso baffled oil pan

Head (USDM GSR)
Skunk2 pro Intake Manifold
Hondata Intake Manifold gasket
home made oil catch can
Skunk2 Tuner valve springs
Skunk2 Tuner 1 cams
Skunk2 Pro cam gears

Turbo (custom build)
Garrett gt2871r with ATP T3 housing
Spoolin quick4ac
Spoolin closed loop 3" Stainless Steel dump tube
Spoolin FMIC piping
Tial 50mm bov
Ebay "400hp" Intercooler
Tial 38mm wastegate
GM 3 bar map sensor
Thermal Research 3" Stainless Steel catback

Electronics/other:
Delphi 880cc injectors (peak and hold)
Neptune RTP hardware (installed in obd1 ecu)
OBD2 -> OBD1 ecu harness
OEM P28 OBD1 ECU- chipped
NGK spark plugs (BKR7E) (gapped at .028")
Walbro 255 fuel pump kit
Greddy profec spec 2 Electronic Boost Controller


·
Registered
Joined
·
366 Posts
JointheRejects on Mar/06/10 said:
block work: (b18c-r)
stock crank (micropolished and balanced w/ CTR crank pulley)
all ARP bolts
OEM bearings
OEM gaskets
stock ITR rods
stock 81mm ITR (jdm) pistons
CTR crank pulley

head: (b16a)
mugen 2 layer head gasket
P&Ped
skunk2 valvetrain
skunk2 stg 1 cams
skunk2 cam gears
Hondata Intake mainfold gasket
skunk2 IM (ported to 70mm)
OEM ITR Throttle Body ported to 66mm
Toda timing belt

tranny:
fidanza aluminum flywheel
fidanza 3-2 clutch
ARP flywheel, and clutch bolts
JDM ITR tranny
energy suspension shift bushings
skunk2 shifter and knob

fuel and management:
walboro 255 lph
RC 370cc injectors (little big but I got a great deal on them)
AEM Fuel Rail (not needed but i just re-used it from last build)

exhaust:
mugen header
Omni power test pipe
T1R Spl (thanks tomm!)

204whp/137 tq.


I dont have the graph that has these numbers...but i got one that is close so it'll have to do


http://static.photobucket.com/player.swf?file=http://vid64.photobucket.com/albums/h177/95gsrb16/100_0965.flv


I will have to say thats pretty impressive with those cams in the car. Have you thought about going something a little beefier? Great numbers though!


·
Administrator
Joined
·
3,582 Posts
Bottom End
B18C1 Block
Hot-tanked & Honed
Wiseco 9.6:1 Pistons
Eagle H-Beam Rods
OEM GSR Crank
ARP Rod Bolts
ARP Cylinder Head Bolts

Cylinder Head
B18C1 Head
Type-R Cams (00-01 Spec)
Skunk2 Pro Series Valve Springs
Skunk2 Titanium Retainers
Skunk2 Cam Gears
Stock Valves
Edelbrock Victor X Intake Manifold

Turbo
Synapse T3 Ramhorn w/AC
Garrett T3/T04E .57 trim
Tial 38mm Wastegate
Tial 50mm BOV
Synapse 2.5in Charge Piping
Synapse 3in Stainless Steel Down Pipe
Garrett Core Intercooler 24x6.3x3
PWM Boost Solenoid
Apexi WS2 80mm Universal Muffler

Fuel
255LPH Walbro Fuel Pump
Precision 880cc Fuel Injectors (Ball & Seat)
Precision OBD-1 Injector Clips


Tuning/Electronics
OBD1 P06 ECU
Demon Tuning Board
Neptune Software
AEM Wideband UEGO Controller w/ Bosch Sensor
GM 3 Bar Map Sensor
TunerView II
TunerView Rd-1


Transmission
Stock GSR Trans
Competion Clutches Sprung 6-Puck Stage-4 Clutch

Power Levels - Tuned
438whp/303wtq @ 19psi

Needless to say, the turbo is completely maxed out. Not to bad though for the size of it.



·
Registered
Joined
·
1,927 Posts
I will have to say thats pretty impressive with those cams in the car. Have you thought about going something a little beefier? Great numbers though!
thanks man, yeah im trying to save up for some skunk2 pro 1 cams and a tri-y header.

on a side note, those numbers do not include actual cam timing...because we never adjusted them, when i got it tuned noone could believe it made those numbers....


·
Registered
Joined
·
4,598 Posts
JointheRejects on Mar/06/10 said:
block work: (b18c-r)
stock crank (micropolished and balanced w/ CTR crank pulley)
all ARP bolts
OEM bearings
OEM gaskets
stock ITR rods
stock 81mm ITR (jdm) pistons
CTR crank pulley

head: (b16a)
mugen 2 layer head gasket
P&Ped
skunk2 valvetrain
skunk2 stg 1 cams
skunk2 cam gears
Hondata Intake mainfold gasket
skunk2 IM (ported to 70mm)
OEM ITR Throttle Body ported to 66mm
Toda timing belt

tranny:
fidanza aluminum flywheel
fidanza 3-2 clutch
ARP flywheel, and clutch bolts
JDM ITR tranny
energy suspension shift bushings
skunk2 shifter and knob

fuel and management:
walboro 255 lph
RC 370cc injectors (little big but I got a great deal on them)
AEM Fuel Rail (not needed but i just re-used it from last build)

exhaust:
mugen header
Omni power test pipe
T1R Spl (thanks tomm!)

204whp/137 tq.


I dont have the graph that has these numbers...but i got one that is close so it'll have to do


http://static.photobucket.com/player.swf?file=http://vid64.photobucket.com/albums/h177/95gsrb16/100_0965.flv
Where did this setup make peak tq?


·
Registered
Joined
·
13 Posts
1995 GSR, I/H/E Set-up on Mild tune.

First run: 158.8hp, 120.54 tq
Second run: 160.01 hp @ 7800rpm, 123.63 tq @ 5800rpm, 90% torque available from 2800-7200rpm
Conditions: ~98°F, ~30% humidity

Set-up:
Comptech Icebox Intake w/ K&N Filter
DC 4-2-1 Ceramic Header
RSR Exmag exahust
Highflow cat
Apexi VAFC


·
Registered
Joined
·
45 Posts
i just recently dynoed my car today... so i dont have graph pic on my computer yet
all stock except
DC short shifter
cheap CAI with K&N filter

i got 146.9 whp and 114wtq

and its 1998 gsr with 130,000 miles


·
Registered
Joined
·
4,598 Posts
teggy999 on Jul/23/10 said:
Stock K24A1 head(OEM VTEC Killer)
Stock K24A2 block
RCrew Header
RBC Intake Manifold
Skunk2 Cams

Love looking at this graph. Must be so much fun to drive. I won't derail this thread, but I'd love to know how you put that power down, lol.

BTW, What kind of Skunk2 cams does it have?


·
Registered
Joined
·
524 Posts
100% stock k20a2

3" CAI
Skunk2 knockoff header
3" exhaust
RBC
Z1 cams
100 shot dry single nozzle
900 bottle psi. Later retuned on the street at 1000psi




I will be posting my direct port setup tomorrow


·
Registered
Joined
·
3,648 Posts
Bottom End:
Stock sleeved GSR
Stock GSR Crank
81.5mm SRP pistons 8.8:1 CR
Eagle H beam rods
ACL race bearings

Head:
Stock GSR head
Stock valves
ITR valve springs
Stock GSR cams

Turbo Setup:
Precision SC6152E turbo
Ramhorn Manifold
3" DP to 3" Vibrant TPV exhaust
SRE intercooler piping
Godspeed 500 hp Intercooler
Tial 38mm WG
Greddy knock off BOV
Edelbrock Victor X IM
Professional Products 68mm TB

Tuned on Neptune by Chad @ MKC made 419whp and 269 ft/lbs tq @ 20 psi on 92 octane pump gas







·
Registered
Joined
·
4,563 Posts
Trans:
- Stock open diff LS tranny

Block:
- 85mm GE GodZilla sleeved B18C5
- GE oil squirter delete plugs
- ITR crank
- ITR water pump
- ITR oil pump
- Eagle H-beam rods with ARP 2000 bolts
- Wiseco 8.8-9:1 CR Pistons
- ACL race bearings

Head:
- Refurbished B17 stock port head
- Blox valve springs
- Blox Type-C cams
- AEM cam gears
- Supertech Ti retainers
- Victor-X IM 68mm
- 68mm Blox TB

Fuel:
- Walbro 255lph intank pump
- AEM fuel rail
- B&M FPR
- Delphi 1000cc injectors

Turbo Setup:
- Full-Race ramhorn
- Full-Race T3/T67HO turbo
- 44mm TiAL WG w/open dump tube
- 50mm TiAL BOV
- 31x12x3 FMIC
- 1st gen SRE IC piping
- Blox MBC
- Blox 4" velocity stack

Exhaust:
- Spoolin' Performance 3" V-band DP
- 3" DP-back piping
- 3" Vibrant black oval muffler

Misc:
- Spoolin' Performance -3AN oil feed line kit
- Gates Racing T-belt
- Blox oil adapter "sandwich" plate
- Omni 3bar MAP
- F1Racing stg. 4 clutch kit
- Half-size dual core aluminum radiator with pusher slim fan
- B&R Valvecover breather kit
- Traction bars






Tuned 1/20/2010 @ RedZone - 91 octane pump gas, and 17 PSI later:

476whp/318trq



Then decided to put on a cool-air extension pipe on the turbo with the v-stack on just to see what it makes on the final pull.

480whp/330trq (didn't ask for a printout)


Vid of that last pull
http://www.youtube.com/watch?v=eqavl-Xk3Y4


·
Registered
Joined
·
1 Posts
Now it's my Honda Challange H1 build

Stock K24A2 Bottom
Stock CRV head
RBC IM
K24A2 cams(OEM VTEC Killer)
R-Crew Header/3" exhaust.
Custom intake w/Turbonetics 4" velocity stack.

247/192 N/A @ 5280ft

wonder why using the stock CRV head instead of the A2 one..

bigger intake valve and ports? the stock one was damaged and this was a replacement?


sorry for the questions but I am such a noob with K series.. :eek:


·
Registered
Joined
·
1,583 Posts
I bought this car as is. But here's the setup and my dyno numbers from today.

Engine:

- Original (rebuilt) LS head w/ mild port and polish
- Original LS block sleeved by Benson and bored to 2.0L
- OEM head gasket bored to 2.0L
- ARP Head Studs
- 9:1 CP Pistons
- Pauter Rods
- ACR Race bearings
- ARP Rod studs
- Precision 525cc injectors

Turbo Stuff:
- Turbonetics Log manifold
- GT3251 Journal Bearing Turbocharger
- Custom 3" Down pipe
- 3" high-flow cat
- Thermal 3" Exhaust
- Garret 500hp Intercooler
- 38mm Tial Wastegate
- Tial BOV
- Boost by Gear/RPM solenoid
- Koyo Half Sized double core radiator
- Walbro 255 fuel pump

Dynoed at 301.86 whp 287.25 wtq 3/26/2011



·
Registered
Joined
·
362 Posts
wonder why using the stock CRV head instead of the A2 one..

bigger intake valve and ports? the stock one was damaged and this was a replacement?


sorry for the questions but I am such a noob with K series.. :eek:
The stock CRV head has identical ports and valves to the K20A/K20A2 heads. But it doesn't have reliefs for Lost Motion Assembly's. So I ran an OEM VTEC Killer setup similar to aznasinine(above).

stealthpenguin said:
Love looking at this graph. Must be so much fun to drive. I won't derail this thread, but I'd love to know how you put that power down, lol.

BTW, What kind of Skunk2 cams does it have?
Thanks! Stage 3's. It's mostly a track ***** now so I run 15x8 949's and 225/50-15 Hoosier R6's. Honestly, it's a little stressful to drive. I've got an S2000 CR that's much more pleasant simply because I have so much more time to relax between turns, and brakes much more predictably. Once I fix the brake situation though, it should be much better. But there's not another FWD car that's even within 4 seconds of my best, so it is quick.


·
Registered
Joined
·
282 Posts
'98 Integra RS

Old Dyno (Non-vtec):
Mods: I/H/E/hi-flo cat, engine mount inserts - 128whp

New Dyno (Swapped vtec head on same car)
Mods:
B16a head
B16a manifold
B16 stock cams I believe
ARP headstuds and rod bolts
ACL race bearings
B16a transmission
Stage 1 clutch
176whp

Used the same dyno both times. I also included old non-vtec and new ls-vtec numbers as well as overlayed both to make it easier to see the gains.


Attachments

21 - 40 of 67 Posts
About this Discussion
66 Replies
48 Participants
bluenc-87
Team Integra Forums
The Team Integra community is a forum dedicated to Acura Integra enthusiasts to discuss engine building, suspension, repair, detailing and anything else Integra related.
Full Forum Listing
Top
