Here's a little writeup to make a true plug and play resistor box for your teg.

Need:
OBD1 distributor side plug (4x2 pin rows) OR Ac subharness (front passenger by the radiator) plug from a teg
Prelude resistor pack
Soldering iron

First off, here's the Prelude OBD1 resistor box with plug: (plug from prelude DOES NOT plug right in a teg)


Here's the dead plug (with the dead plug removed:


And here's what we're wiring up:



So depin the prelude harness and your matching 8 pin oem plug (Sourced from OBD1 dizzy or AC sub harness)

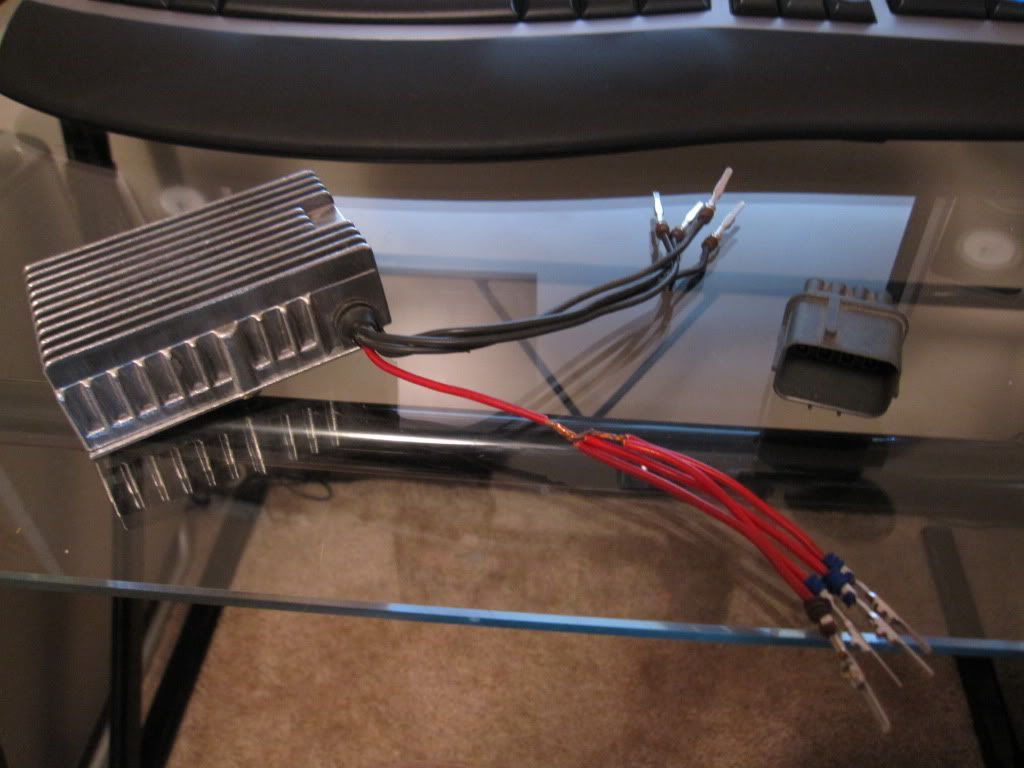

I colored orange and white wires red to match the one red wire in the prelude box. Here's how I staggered the extra +12 wires before soldering:

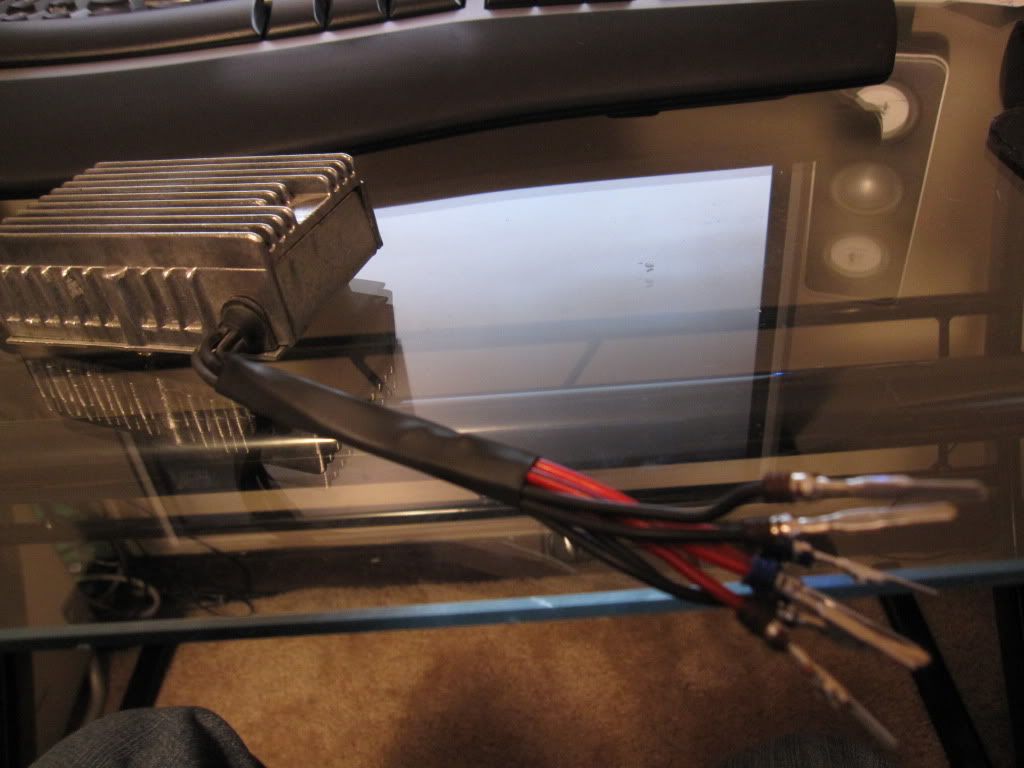

Those joints were soldered! You MUST do this step, not optional! I then placed heat shrink over the whole bundle:

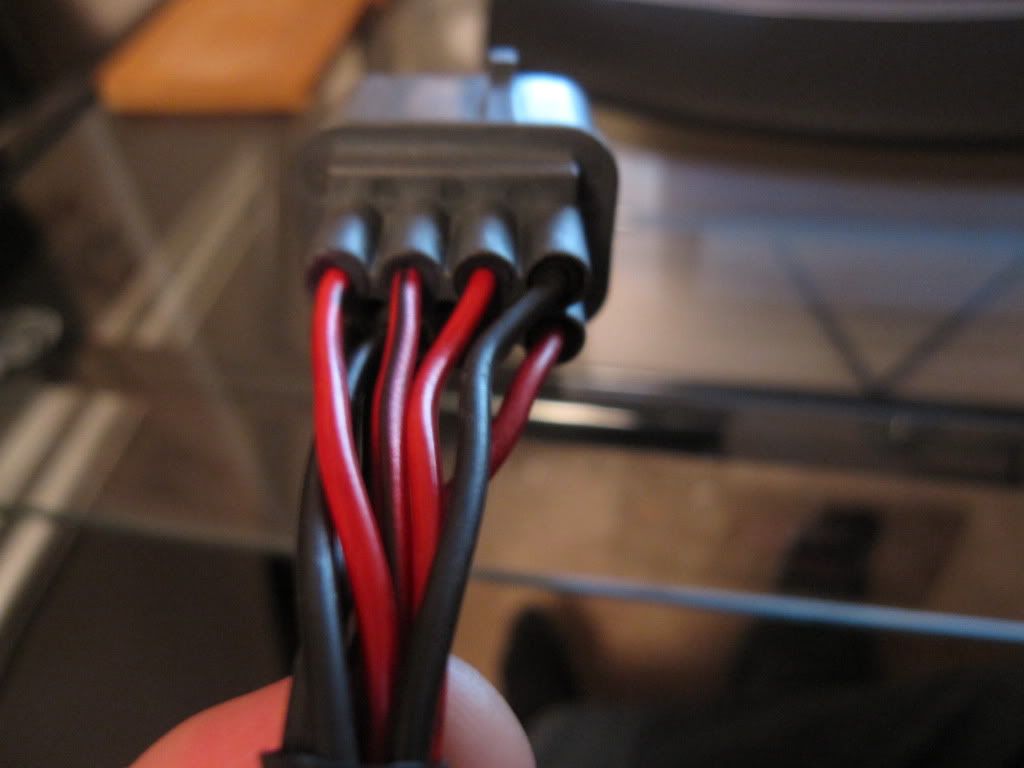

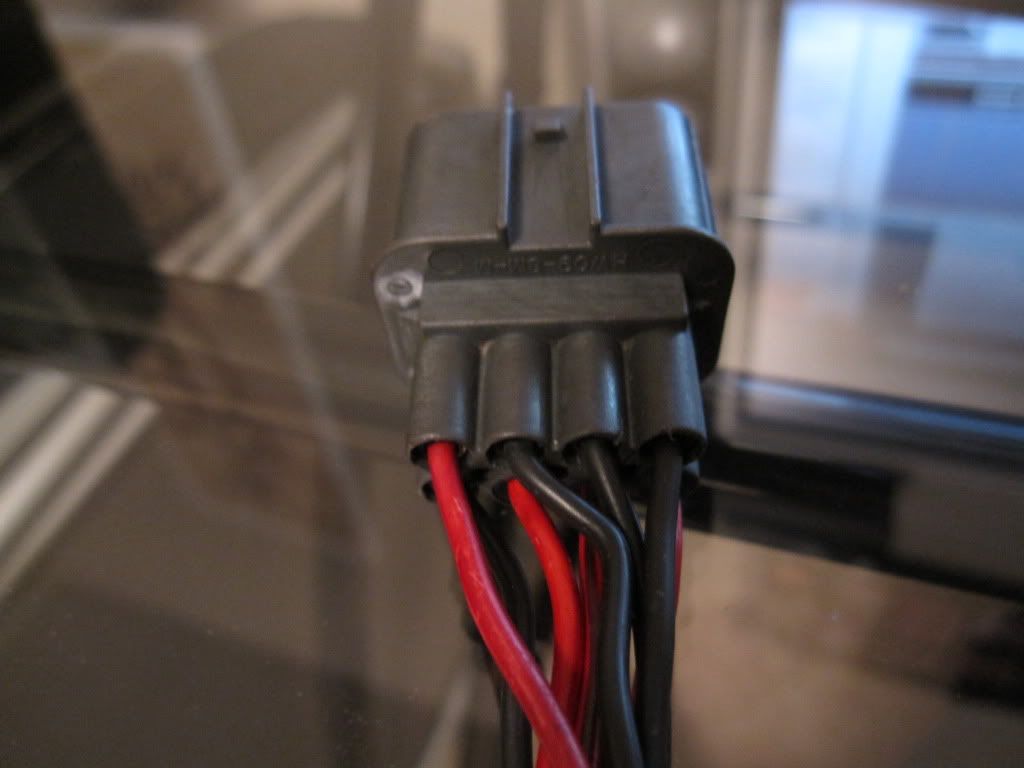

And repinned the harness plug:

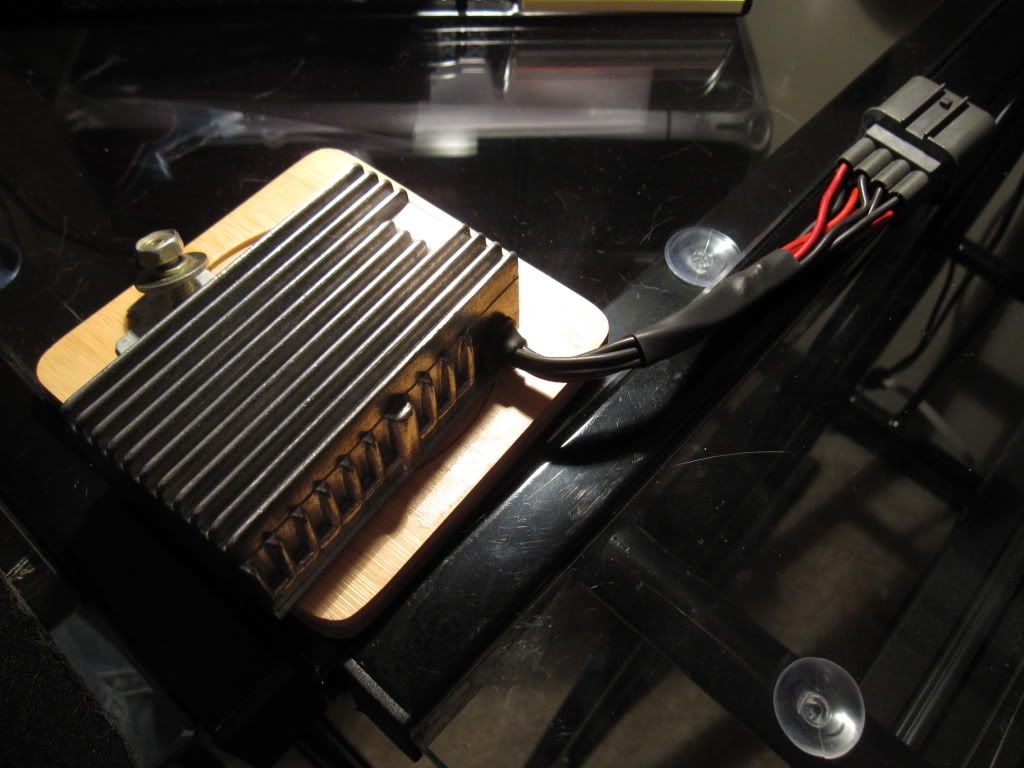

And here's the final plug and play product:
MeltMan is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 04-16-2010, 11:35 PM   #2 (permalink)
Senior Member

Real Name: Robb
Join Date: Nov 2006
Location: West Burbs, IL
Model: GSR
Year: 2000
Feedback Score: 14 reviews
Default

1) These are sneaky
2) Nice wiring job. Very clean.
3) Tots doing this...
__________________
I like learning. Don't you? My JRSC build log
BlownGsR1001 is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 12:00 AM   #3 (permalink)
Banned

Real Name: Chandler
Join Date: Oct 2005
Location: Minot , ND
Model: STi
Year: 2005
Feedback Score: 3 reviews
Default

As always Casey, Good work! Your projects always come out so clean.
97lsteggy is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 12:29 AM   #4 (permalink)
Senior Member

luck4rmkc's Avatar

Real Name: Josh
Join Date: Sep 2007
Location: KC, MO
Model: Turbo GSR
Year: '97
Feedback Score: 4 reviews
Default

Looks good casey I have high impedance injectors so i didn't need to do this myself. What kind of advantages do you see from the ball and seat injectors as opposed to the saturated?
__________________

750whp GSR build thread
How to Install an LSD
Brotato Racing - Best E.T. 10.6 @ 140mph
luck4rmkc is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 02:44 AM   #5 (permalink)
Banned

Join Date: Nov 2008
Location: Santa Barbara, CA
Feedback Score: 0 reviews
Default

What is the exact purpose of this? Why would you need to add resistors to your fuel injectors? -Aaron
theivjackal is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 02:54 AM   #6 (permalink)
Senior Member

sgtmillhouse648's Avatar

Real Name: Malhon
Join Date: Jul 2007
Location: Trailbrakng in, IA
Model: Trailblazer LT
Year: 2002
Articles: 1
Feedback Score: 14 reviews
Default

When using low impedence injectors for higher hp builds, it is necessary to beef up the resistance of the injector circuit otherwise you will fry the injector drivers.
__________________

2001 Honda S2000 - SCCA Solo B Stock
- FailinConcepts Racing
"One of the great things in motor racing is concentration. When I want to go faster I don't drive any faster, I just concentrate harder." - Jim Clark

sgtmillhouse648 is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 10:46 AM   #7 (permalink)
Super Moderator

MeltMan's Avatar

Real Name: Casey
Join Date: Apr 2002
Location: Chicago, IL
Model: The 'L' train
Articles: 3
Feedback Score: 35 reviews
Default

Quote:
Originally Posted by luck4rmkc on Apr/16/10
Looks good casey I have high impedance injectors so i didn't need to do this myself. What kind of advantages do you see from the ball and seat injectors as opposed to the saturated?

$MoNEY$

I'm using Evo 8 injectors. They were $100 for 560cc and are modern OEM with a good spray pattern.
MeltMan is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 11:37 AM   #8 (permalink)
Junior Member

Join Date: Oct 2007
Location: SELMA, CA
Feedback Score: 0 reviews
Default

Nice write up.
__________________
"SAVE A TREE EAT A BEAVER"
ONE4ONE is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 11:49 AM   #9 (permalink)
Senior Member

luck4rmkc's Avatar

Real Name: Josh
Join Date: Sep 2007
Location: KC, MO
Model: Turbo GSR
Year: '97
Feedback Score: 4 reviews
Default

Quote:
Originally Posted by MeltMan on Apr/17/10
Quote: luck4rmkc on Apr/16/10Looks good casey I have high impedance injectors so i didn't need to do this myself. What kind of advantages do you see from the ball and seat injectors as opposed to the saturated?


$MoNEY$

I'm using Evo 8 injectors. They were $100 for 560cc and are modern OEM with a good spray pattern.
ok I feel that... well my wallet feels that cuz it is emptyyyyyyy!!!!! I was thinking I remembered that the ball and seat style injectors were better in some way. Like they had a better spray pattern or were more accurate when tuning but i couldn't remember
luck4rmkc is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 08:50 PM   #10 (permalink)
Super Moderator

MeltMan's Avatar

Real Name: Casey
Join Date: Apr 2002
Location: Chicago, IL
Model: The 'L' train
Articles: 3
Feedback Score: 35 reviews
Default

Here's where I put it. Dont know what that threaded hole was for but it works perfectly for the resistor box.



MeltMan is offline   Reply With Quote Quick reply to this message
Old 04-17-2010, 10:12 PM   #11 (permalink)
Senior Member

Ramirez428's Avatar

Real Name: Jose
Join Date: Dec 2005
Location: , CA
Model: GSR
Year: 1995
Feedback Score: 8 reviews
Default

Good job there Casey. Keeping it plug-n-play as always
Ramirez428 is offline   Reply With Quote Quick reply to this message
Old 04-19-2010, 03:12 PM   #12 (permalink)
Senior Member

JRutski's Avatar

Join Date: May 2005
Location: In the garage, FL
Feedback Score: 4 reviews
Default

Dangit!!!! Now I have another weeked project!

Nice, as always Casey!
__________________
If Acura ever decides to go searching for its soul, it's out in my garage.
JRutski is offline   Reply With Quote Quick reply to this message
Old 04-26-2010, 11:48 PM   #13 (permalink)
Senior Member

Join Date: Nov 2005
Location: Venice, FL
Feedback Score: 14 reviews
Default

will be doing this as well! i will post pics of it when its finished =)
__________________
PB in my built beast gsr: 10.4 @ 143 C16 30PSI

SEARCH "95DC2TEG" ON YOUTUBE FOR VIDEOS!



PB in my stock long block boosted LS: 12.2 @ 113mph 17lbs 307whp/283tq
Antman985 is offline   Reply With Quote Quick reply to this message
Old 07-31-2010, 12:57 AM   #14 (permalink)
Member

Join Date: May 2009
Location: , WA
Feedback Score: 0 reviews
Default

hey where did you get the pins and the the little rubber grommets for the pins?
